1224 II T Doorline

A new generation doorline series in which door handle lock operations, door surface treatments, and sizing operations are carried out together. With the doorline series, which has a side processing engine for sizing and side hole operations, CNC surface operations, opening door handle locks, and sizing operations can be easily performed without the need for a second machine. 2 door operations at the same time with Doorline IIT! Specially designed for door manufacturers, 1224 doorline 122x244 has 2 processing tables. After the process is completed, while the machine is completing second door operations, finished jobs can be emptied and made ready for the new operation.

High Quality Grinded and Hardened Rack, Rail and Gear System

High quality ground and hardened rails, racks and gear systems are used in order to achieve the best results at high speeds.

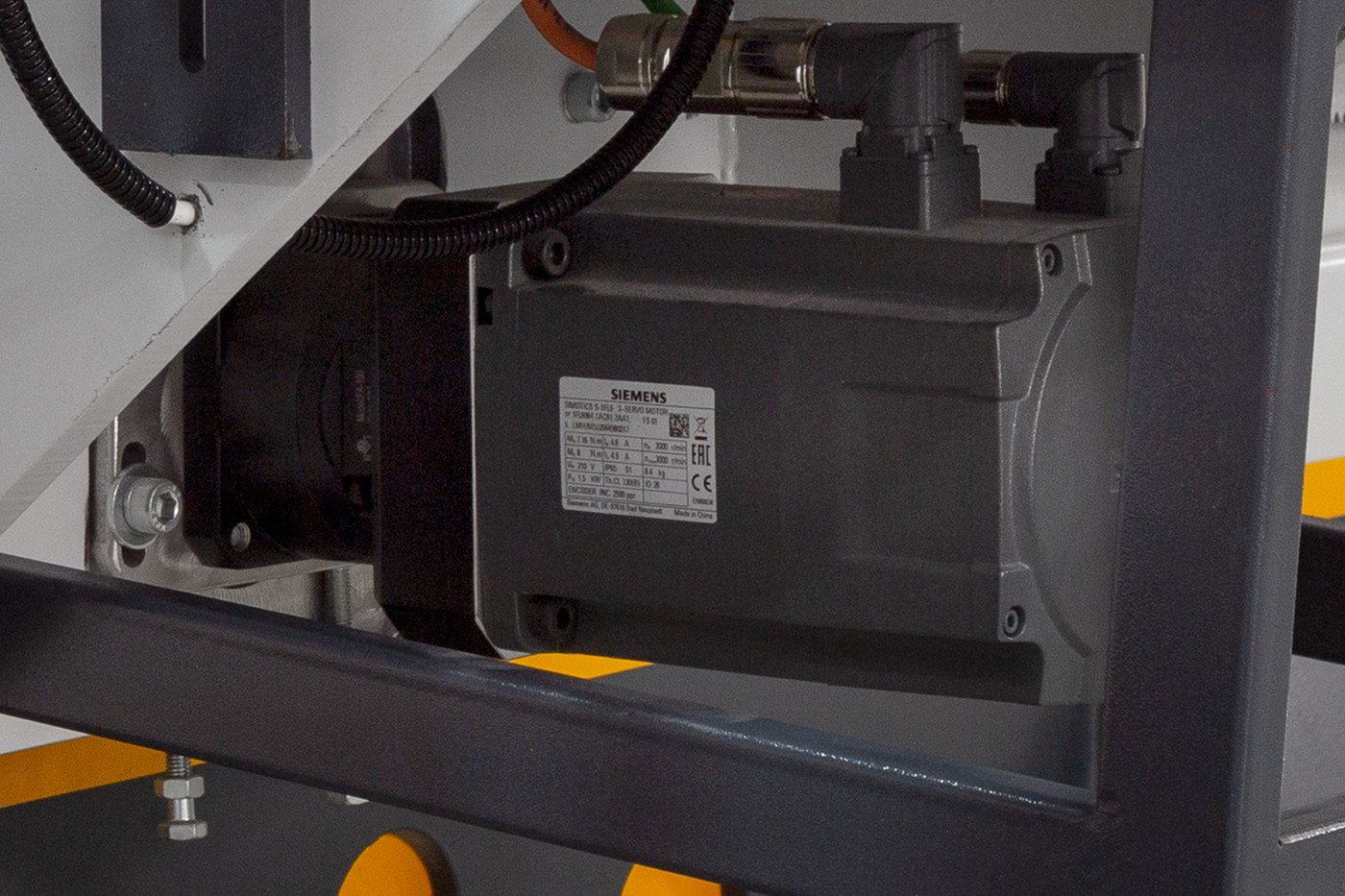

Axis Control with Servo Motor

All axes on the machine are controlled with the help of servo motors.
With the use of servo motors; It produces excellent results with millimetric measurement, high acceleration and high precision.

Referencing with Stop Pistons

Part referencing is carried out easily with the help of automatically controlled support pistons on the machine table.

Control Unit

New generation Siemens and Delta industrial Cnc control unit and easy to use interface program.





Creative Solutions with Flexible CAD / CAM Applications

Alphacam provides convenience for powerful design and production with pegasus and cabinet vision programs.

One Machining Center for Different Types of Applications


8.5 KW HSK F63 spindle motor sizing, surface treatment, modeling etc. It allows you to get excellent results at high speeds in your milling applications. Processing engine wood, aluminum, plastic, alicoband, plexiglass and so on. Can process materials.

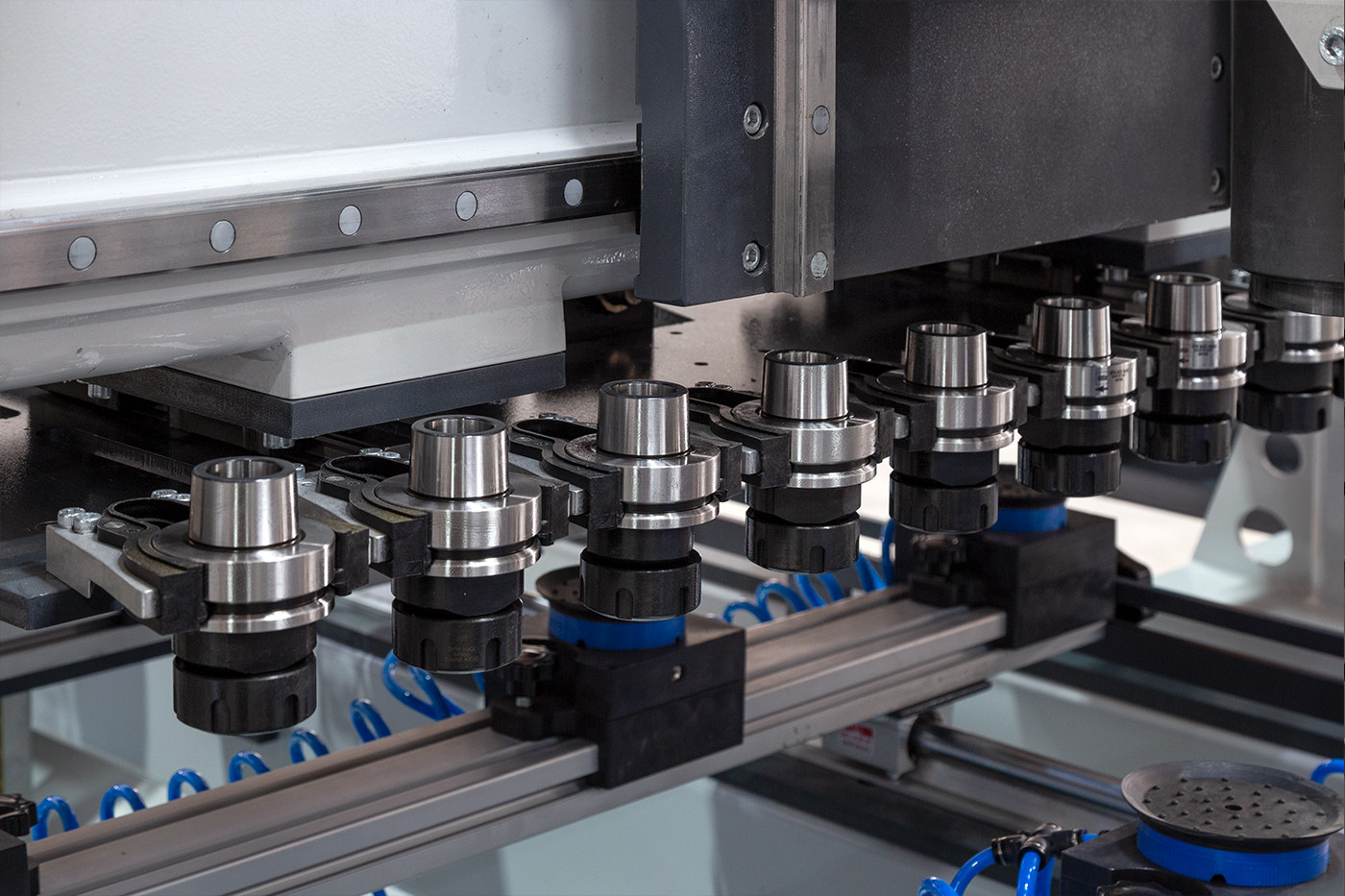

Automatic Tool Change

With this system, the machine can quickly change the tool where it is.

Automatic Tool Length Measurement

It measures the tool length automatically with the sensitive tool measuring probe and saves it to the relevant screen on the control unit. Automatic tool length measuring probe shortens tool preparation time and minimizes the possibility of operator error.

Automatic Lubrication System

With the automatic lubrication system, all moving systems are automatically lubricated at certain time intervals. In addition, there is a manual lubrication button on the lubricating tank that can be used at any time.






Cnc Router fiyatları ve teknik özellikleri ile alakalı daha detaylı bilgi almak için lütfen bizimle iletişime geçin.



PRODUCTSPRODUCTS SPECIFICATION BRAND / MODEL
CONTROL UNITSINUMERIK 808D / M300 ASIEMENS / DELTA
X AXIS MOTOR1.5 KW 2000 D.D.SIEMENS / DELTA
Y AXIS MOTOR1.5 KW 2000 D.D.SIEMENS / DELTA
Z AXIS MOTOR1 KW 2000 D.D. BREAKEDSIEMENS / DELTA
ELECTRIC SPINDLE8,5 / 12 KW 24.000 RPMHITECO
VACUUM PUMP13 KW GP 600 EPOMWAK/DVP/GEV
VACUUM WORKING TABLE SIZE1 1/4’’ – 5 AREA 32 CENTERTORK
VACUUM TABLE SIZE18mm X 2 COMPACTASD/GENTAŞ
REDUCERFA 100 1/10 BODYLIMING
PACK MOTION GROUP25X25 MOD2 HELICALBRL
PINION MOTION GROUPZ32 MOD HELICALBRL
LINEAR MOTION GROUP X AXISEXTENSIVE TYPE G3 25STAFF
LINEAR MOTION GROUP Z AXISEXTENSIVE TYPE G3 25STAFF
LINEAR MOTION GROUP Y AXISEXTENSIVETYPE G3 35STAFF
BALLSCREW25 X 475GTEN
AUTOMATIC LUBRICATION SYSTEM2 LT / HYDRO OIL HD 46SCHNITZER
TOOL HOLDER ADAPTORHSK F-63 ER32IMS
CAM SOFTWARE3D STANDARTPEGASUS
TOOL RESETSWITCH SYSTEMTELEMECANIQUE
MITER SYSTEM3 + 4 7 PISTONSEXPFLEX
DUST SUCTIONOTOMATIC DUMMY FLANGEFTC
TOOL CHANGINGUNDER THE BRIGE 10 PCSMAKSER
TOOL CHANGING APPARATUSPLASTIC BREAKABLE FORK ENDMAKSER
CLADDINGPROTECED PROLINEMAKSER
