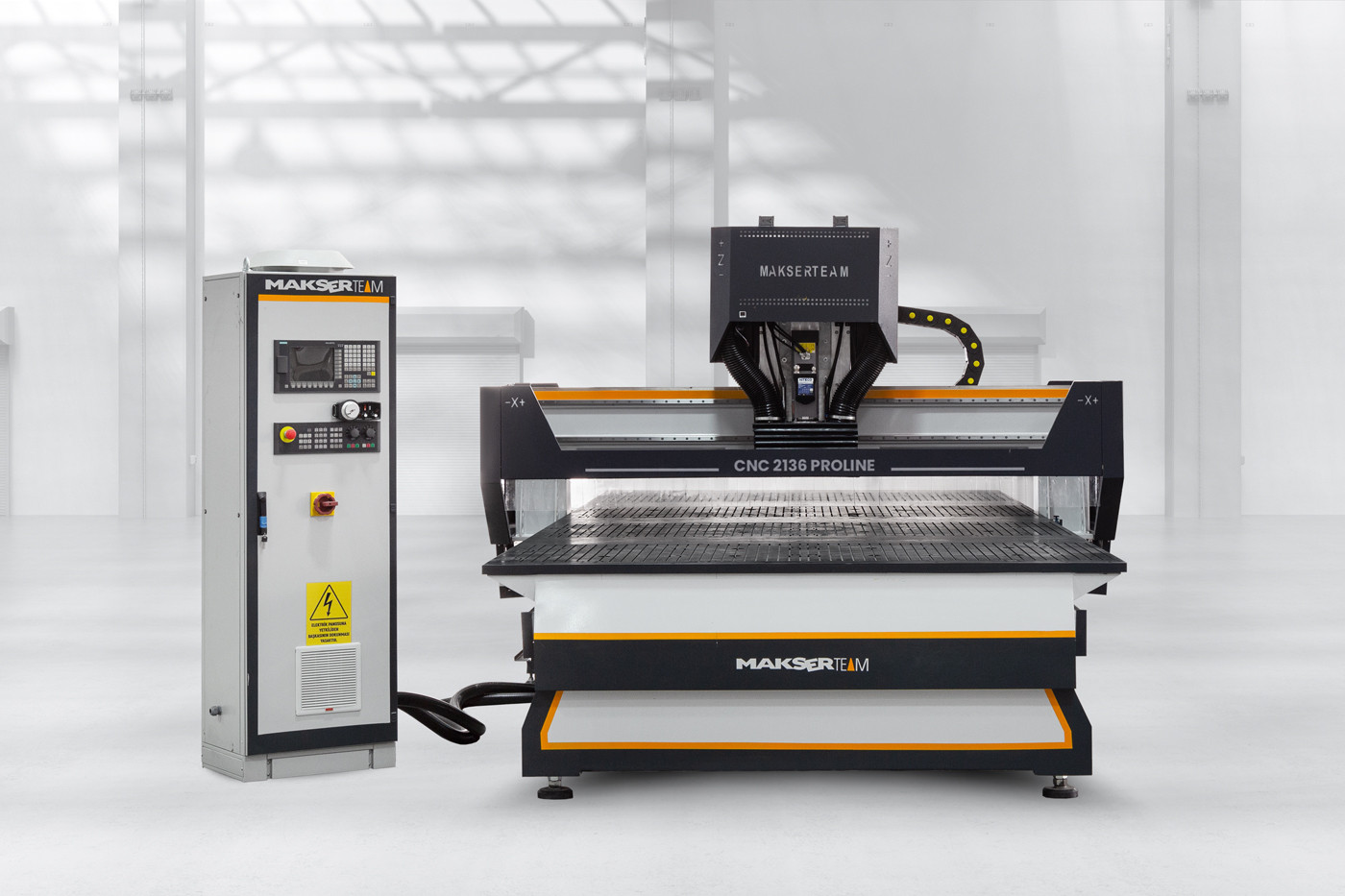

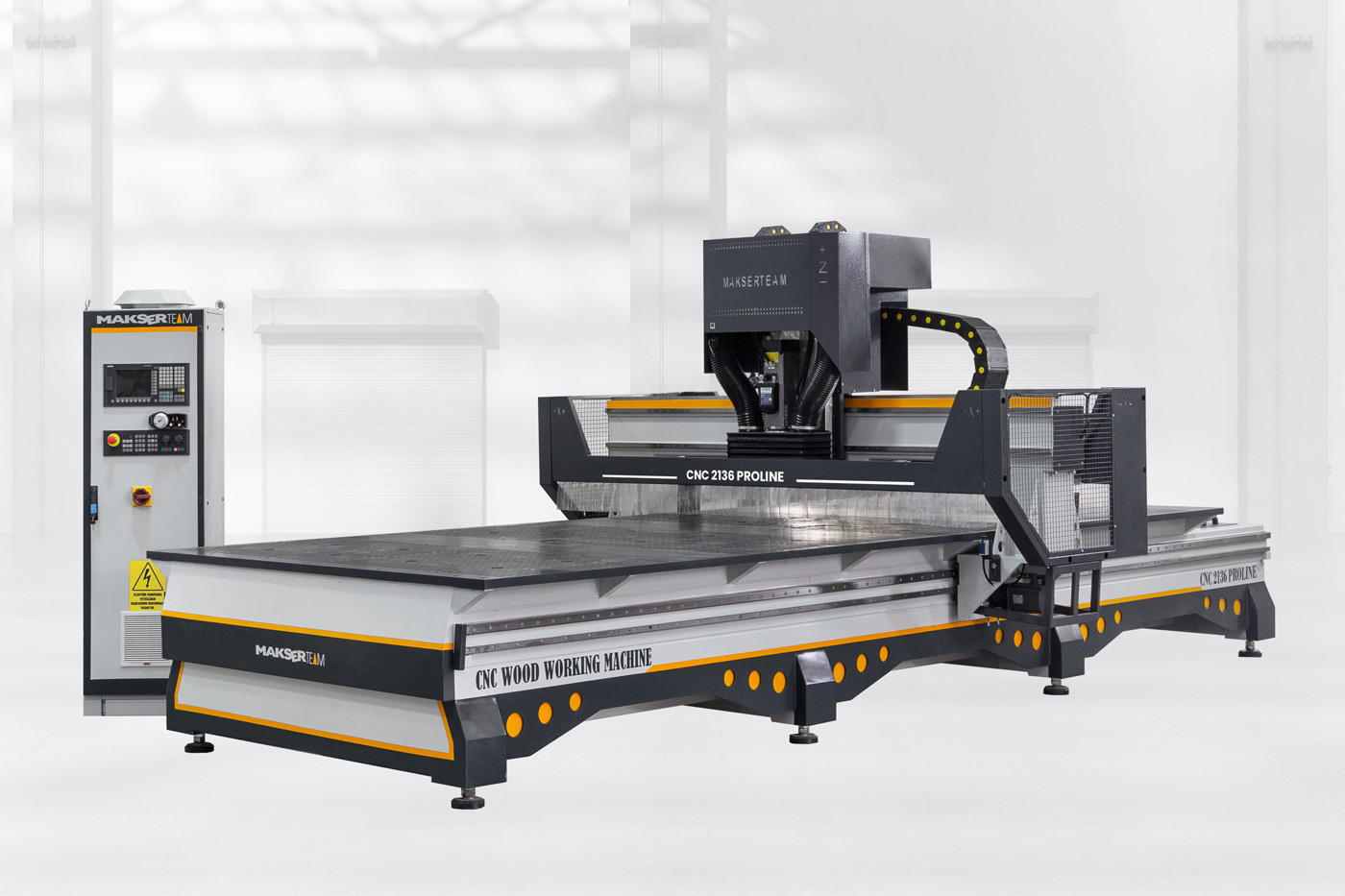

High level usage with the composite table.
Operation table is made of composite materials. For powerful consumption the table is distributed to equal vacuum blocks which can be free control.
High quality hardened rack, pinions and gear system
Low-vibration, dynamic and high quality hardened rack, pinions and gear system are used to ensures axis movements on high speeds.
Automatic central lubrication unit
Automatic lubrication unit making lubrication on all bearing moving system.
Axis control with servo motors
All axis on the machine are controlled by servo motors
Easy referencing with fulcrum pistons
Piece referencing can make easily by the fulcrum pistons on the machine table which are controlled automatically.
High performance and highly productive vacuum pump provides maximum hold for cutting pieceson table.
machine has been cotrolled by the new generation industrial based cnc control unit.
Manuel control with hand wheel or hand
Creative solutions with flexible cad/cam applications
fastest way from design to production
Cabinet vision is most advanced program for cabinet manufacturing.
Processing unit ( spindle)
Single machining center for different type of applications.
8.5 kw hsk f63 spindle motor ensures excellent results on sizing, surface processing modelling etc. On routing applications. Motor can make processing of wood, aluminium, plastic, alucobond, plexiglass etc materials.
High performance boring units adaptable to customer needs
Automatic tool changer unit
Under bridge automatic tool changer with ten tools capacity is standard..
Automatic tool offset
The unit calculates tool lengths automatically and registers to related screen on the control unit. With automatic tool offset the tool preperation time is reduced
possibility of operator mistakes reaches minimum level.
Full automatic production line ( optional)
Makser (loading and unloading) yb model has been designed for middle and large scale companies who are making serial production line
makser yb sytem’s unit
With machine yb model
Minimum operator needs
Efficiency in production provides
Multiway usage with aggregate options (optional)
Optional door module
You can make sizing and drilling process at same time with aggregate which special cup-lock for fixed door on table.
Please contact us to get detailed information about Cnc Router prices and specifications.
|MATERIAL / MODAL||TECHNICAL SPECIFICATIONS|
|COMPACT TABLE||X2100 Y3600 Z300 WORKING TABLE|
|ANGULATION/TUNNELING PISTONS||50x30 SS ANGULATION/TUNNELING WITH 7 PISTONS|
|SERVO MOTOR||X 1.5 KW 2000 RPM-Y1&Y2 1.5 KW 2000 RPM - Z1 1.0 KW 2000 RPM|
|ELECTRICAL SWITCH GROUP||INDUSTRIAL SERIES|
|REDUCTOR||120 BODY R:1/10 3 ARC.<BACKLASH<5 ARCHMIN|
|Y AXIS - LINEAR BEARING SYSTEM||Y:35 G3 WIDE TYPE LINEAR BEARING AND GUIDE|
|Z AND X AXIS - LINEAR BEARING SYSTEM||Z AND X :25 G3 WIDE TYPE LINEAR BEARING AND GUIDE|
|RACK AND PINION SYSTEM||25x25 MOD2 HELICAL - HARDENED - GRINDED GEAR & Z32 PINION|
|SCREWED MILL SYSTEM ( Z AXIS)||25 x 05 x 475 MM|
|SPINDLE MOTOR||8.5 KW 24.000 RPM HSK F63|
|TOOL CHANGE||AUTOMATIC TOOL CHANGE / UNDER BRIDGE / 10 UNITS|
|CONTROL PANEL||NC 300A MS-AE 8'' INDUSTRIAL CNC CONTROL PANEL|
|CAD&CAM PROGRAM||3D STANDARD DRAWING PROGRAM / 2 YEARS LICENSED|
|VACUUM PUMP||305 M3 / HOUR - ULTIMATE PRESSURE 0.5 BAR|
|VACUUM SYSTEM||5 ZONE|
|LUBRICATION / OIL TANK||AUTOMATIC LUBRICATION UNIT|
|WEIGHT AND LOADING SIZE||3950 KG / 2200 x 4000 x 2500|
|ELECTRICITY AND AIR REQUIREMENT||380 V 3 PHASE 20 KW / 50 - 60 HZ / 8 BAR DRY AIR|
